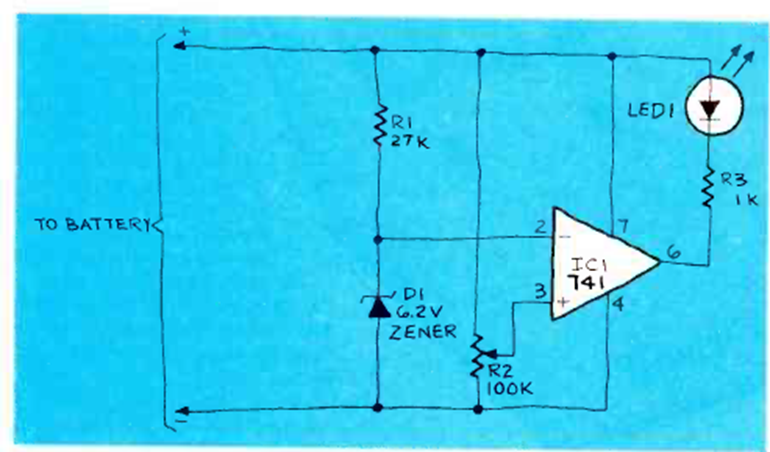

This circuit is for 12 V batteries but can be used with batteries of other voltages by changing the zener diode. The trigger point is adjusted by R1. The operating system accepts equivalents.
