Optocoupler Code Practice (CB26321E)

Details: Written by: Newton C. Braga

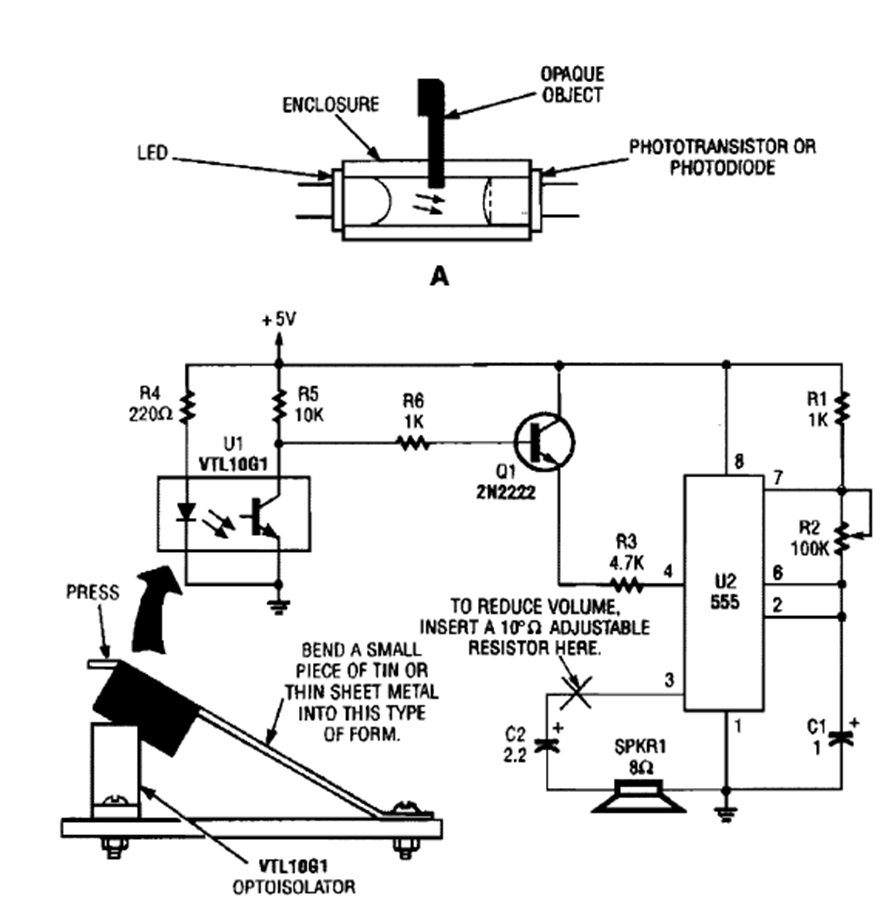

This ingenious circuit was found in a 1990s Popular Electronics. The oscillator is a 555 and the keyer uses an optocoupler in the configuration shown.
