Bistable Control 4013 (CB26043E)

Details
Written by: Newton C. Braga

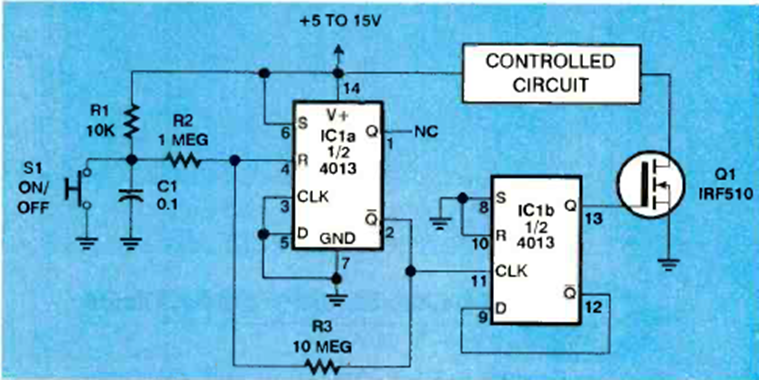

Found in the April 1998 Electronics Now magazine, this circuit controls loads that rely on the power transistor. The circuit uses a single push button for control.
