5A Regulator (CB2179E)

Details
Written by: Newton C. Braga

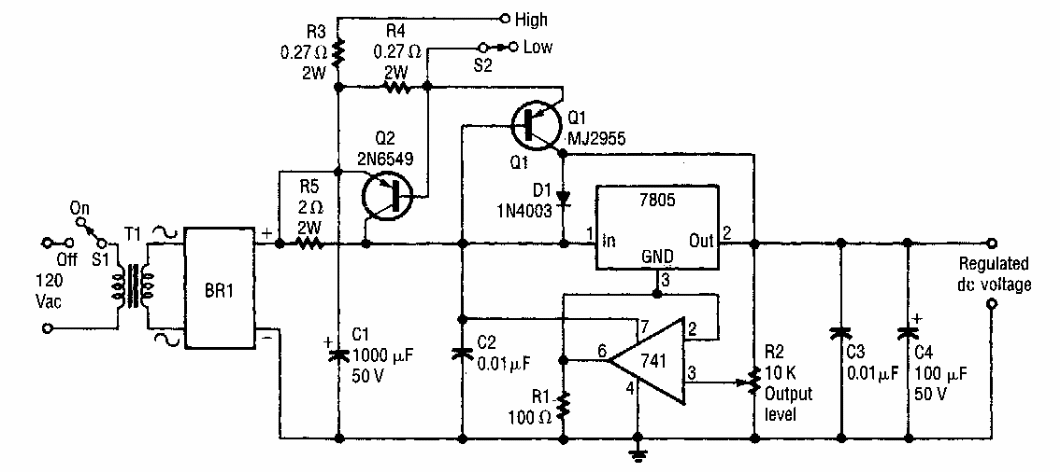

This circuit was found in an Electronics Now from the 90's. The integrated regulator circuit and the power transistor must be equipped with heat radiators.




| Clique na imagem para ampliar |
