Digital Circuits Test (CB3809E)

Details
Written by: Newton C. Braga

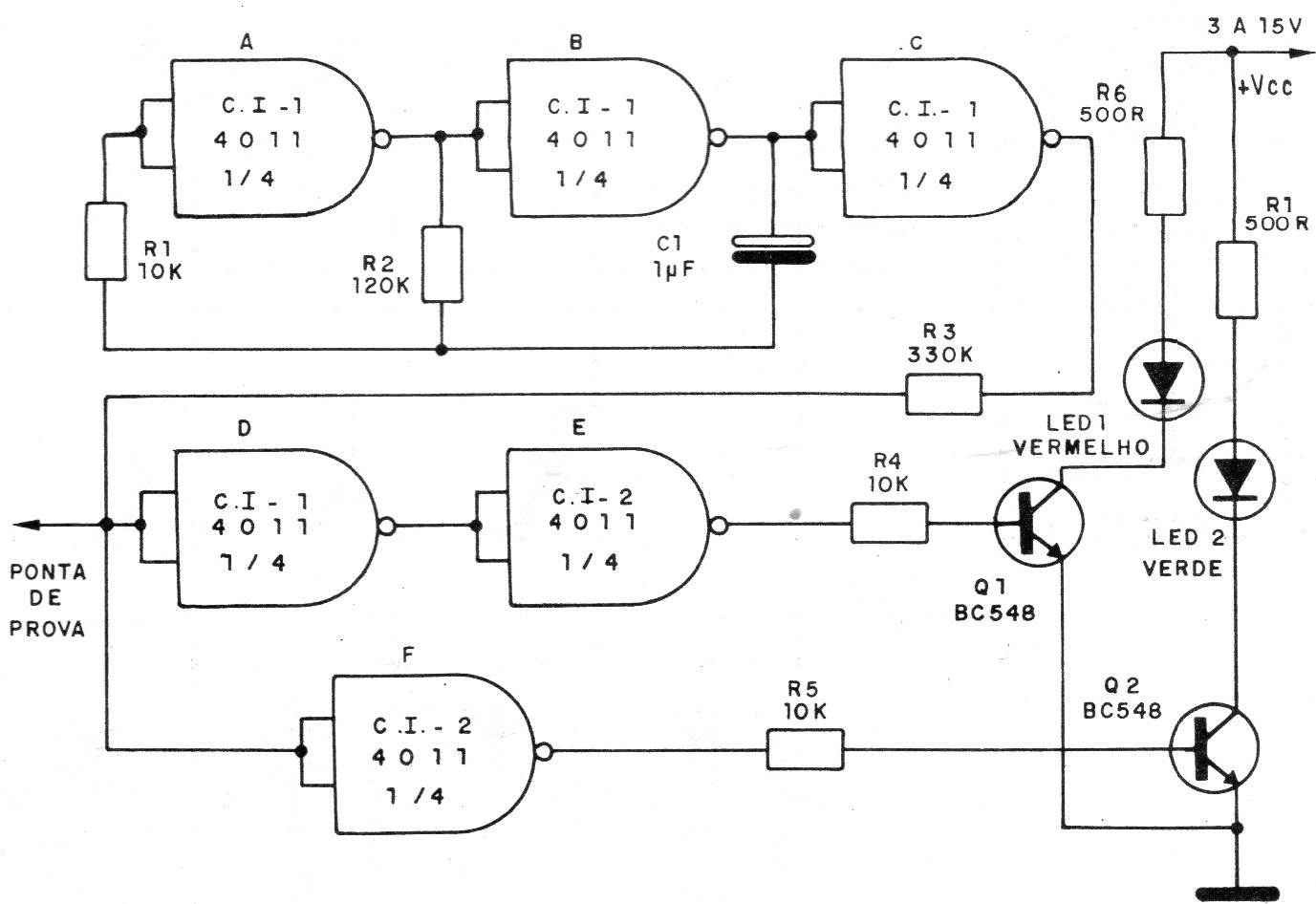

     This simple digital circuit tester can work with TTL technology when powered by 5 V and with CMOS when powered by voltages from 3 to 15 V. The circuit provides LED indications and uses current ICs.




| Clique na imagem para ampliar |
