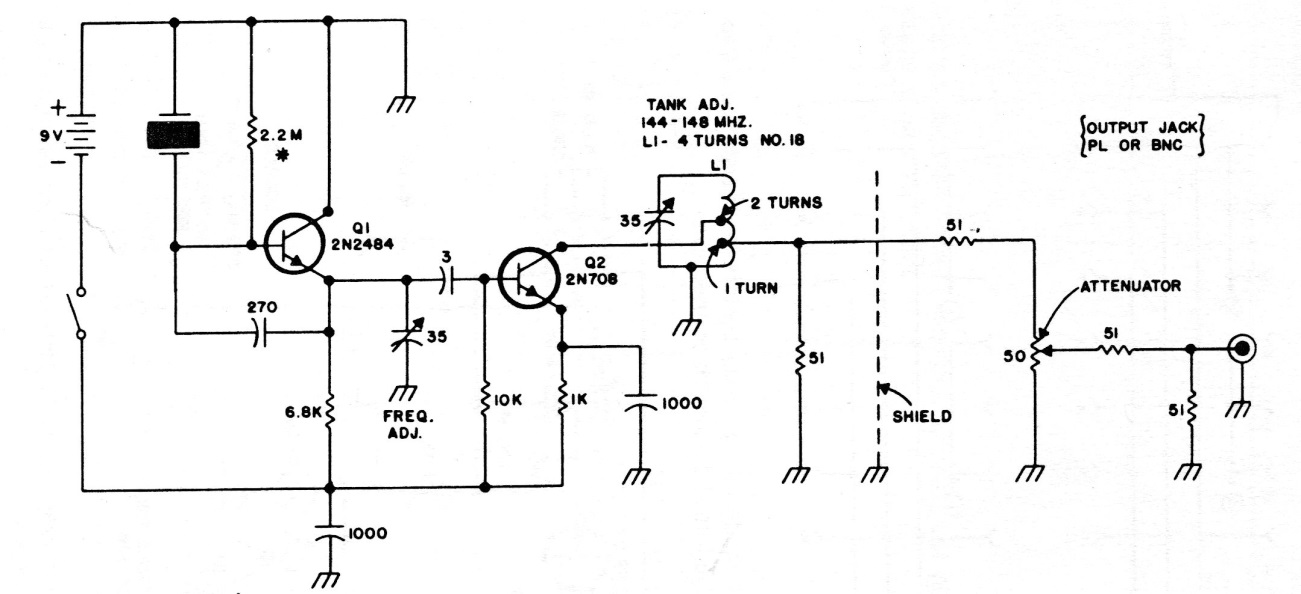

FM Signal Generator (CB3897E)

Details
Written by: Newton C. Braga



    This circuit was found in documentation from the 1970s. However, it can be implemented with modern transistors such as 2N2222 for Q1 and BF494 for Q2. The crystal depends on the desired frequency.
