555 Timer For Long Intervals (CB3980E)

Details
Written by: Newton C. Braga

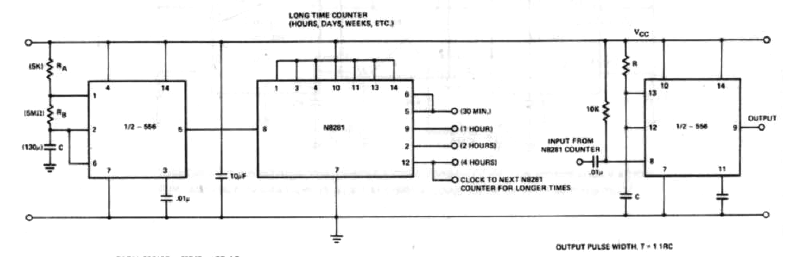

   This circuit is from an old Mullard (Philips) manual with applications using the 555. Choosing appropriately the resistors and the timing capacitors, the ranges obtained can exceed days.
