555 Car Alarm (CB3990E)

Details
Written by: Newton C. Braga

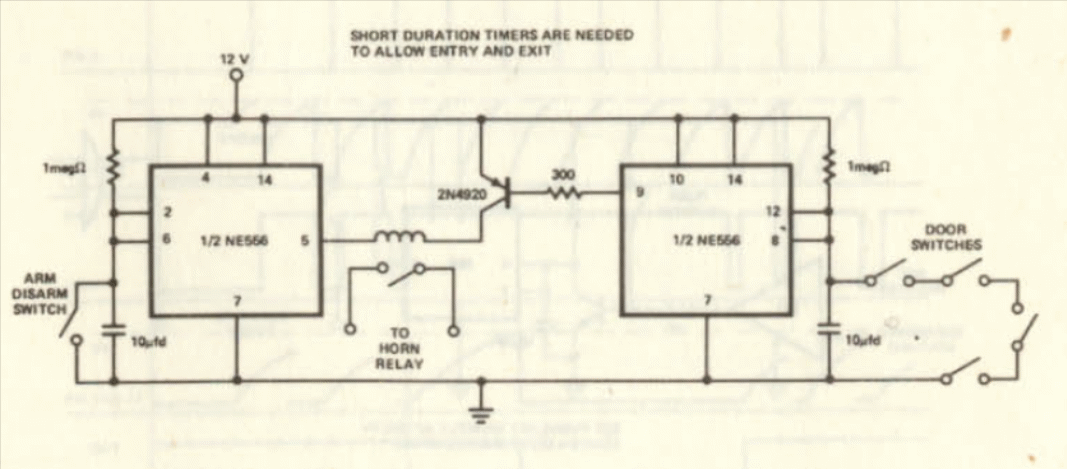

   We found this circuit in an old Mullard (Philips) documentation on the 555 and 556 integrated circuit (double 555). The relay must be 12 V with contacts that support the horn current.
