Zero Crossing Detector LM139 (CB4009E)

Details
Written by: Newton C. Braga

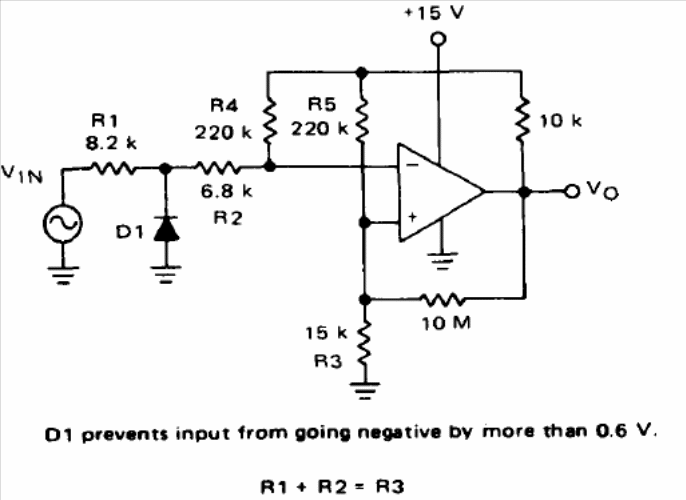

   This circuit was obtained in the 1990 Motorola Linear Databook. The circuit uses a 139 series comparator, but other series can be used. The power source need not be symmetric.




| Clique na imagem para ampliar |
