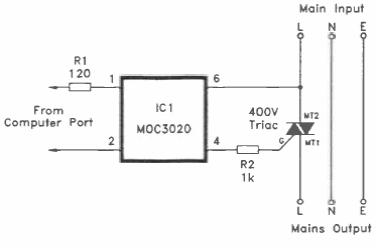

Opto control for triac (CB20552E)

Details
Written by: Newton C. Braga



Found a documentation for PC from 1992, this circuit is indicated for the English power grid of 240 V.
