15 W Amplifier - Power Stage (CB20581E)

Details
Written by: Newton C. Braga

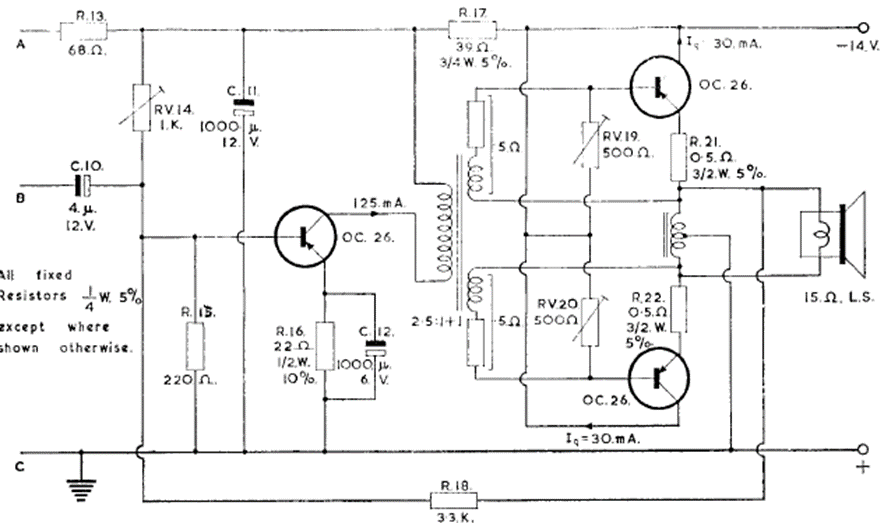

This is the power step of the previous circuit. Output transistors must be mounted on good heat sinks. The circuit is from documentation from the 60s.




| Clique na imagem para ampliar |
