Balanced Modulator (CB4108E)

Details: Written by: Newton C. Braga

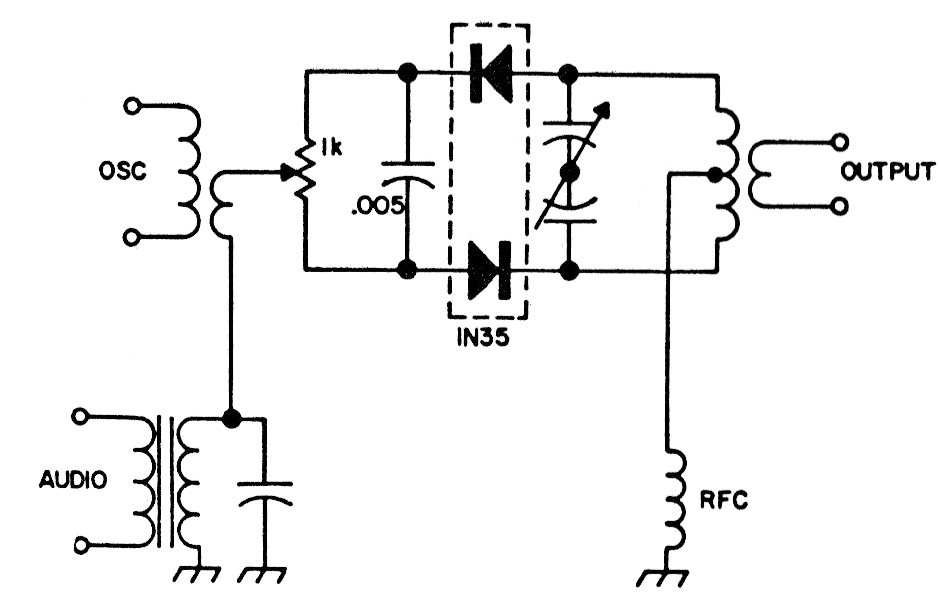

We found this balanced modulator circuit for DSB and possibly SSB transmissions in US 1980s telecommunications documentation. The diodes can be replaced with equivalents.

| Clique na imagem para ampliar |
