AGC Reverse for Transistor Radios (CB4144E)

Details: Written by: Newton C. Braga

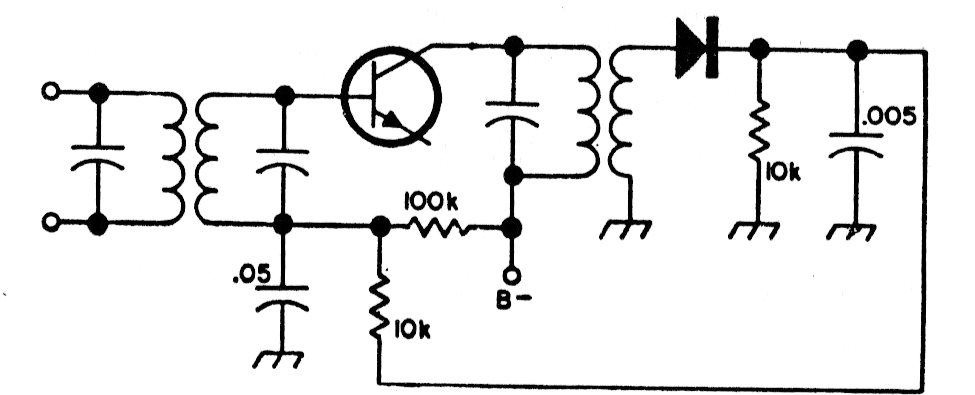

This circuit was found in an American 1980s documentation. The transistorized step is the receiver's last IF and the diode is the receiver's existing detector.
