Varactor modulator (CB4203E)

Details
Written by: Newton C. Braga

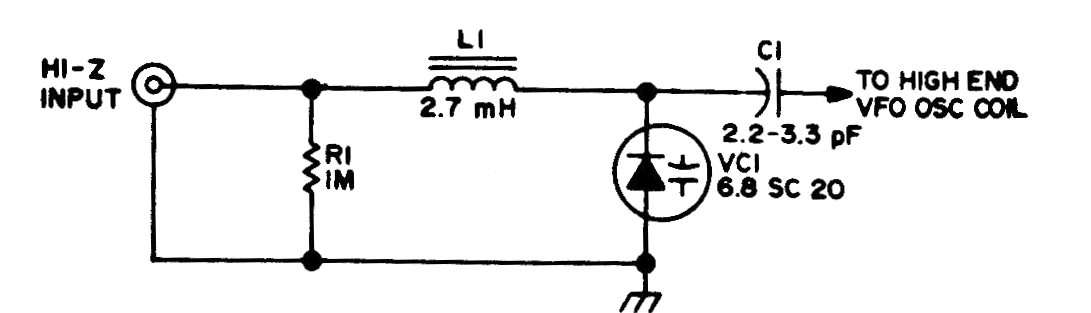

     Found in an old American documentation this FM modulator makes use of a varactor diode. The circuit can be easily implemented given the small number of components used.
