Video Amplifier (CB4209E)

Details: Written by: Newton C. Braga

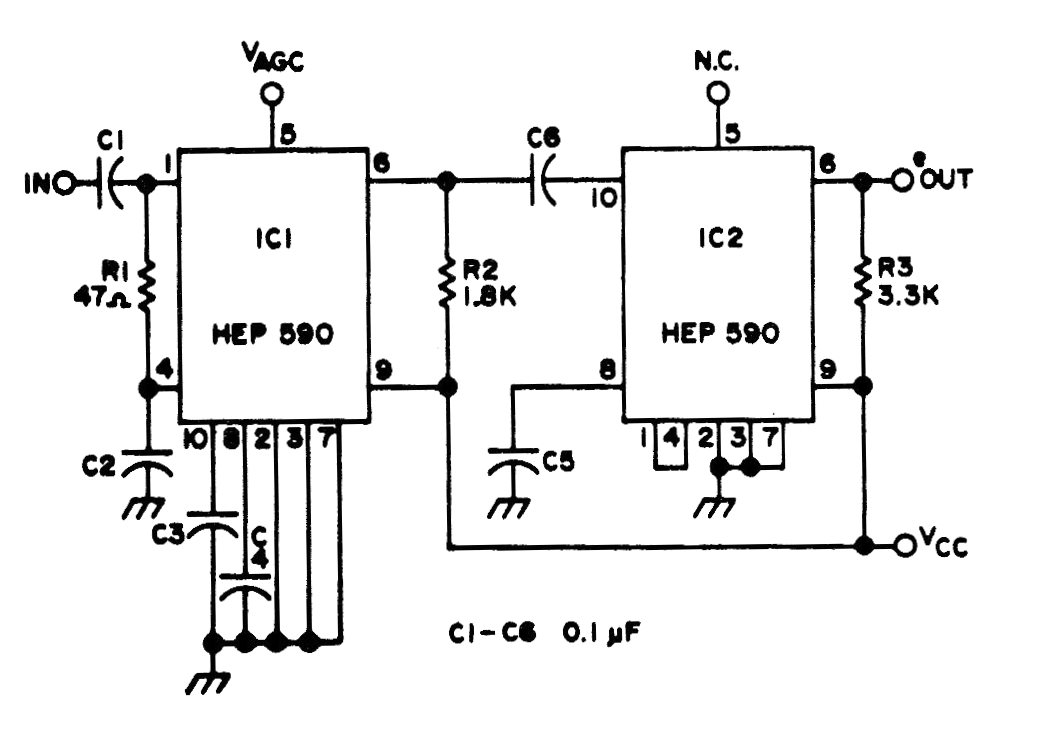

This old two-stage video amplifier uses integrated circuits that are not easily obtainable today. The circuit is for analog video and was found in an American 1980s documentation.

| Clique na imagem para ampliar |
