Broadcasting band amplifier (CB8404E)

Details
Written by: Newton C. Braga

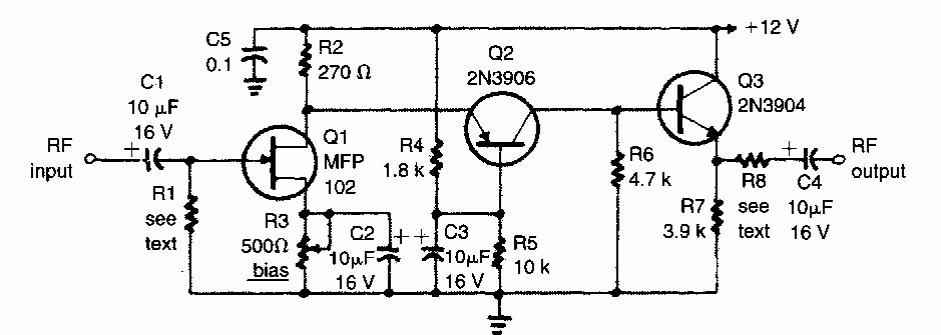

    Found in a 90s R-E Experimenters Handbook, this circuit amplifies signals from 100 Hz to 3 MHz. The circuit has a gain of approximately 30 dB. Bipolar transistors are general-purpose types.




| Clique na imagem para ampliar |
