Rectangular Oscillator LM393 (CB4485E)
- Details
- Written by: Newton C. Braga

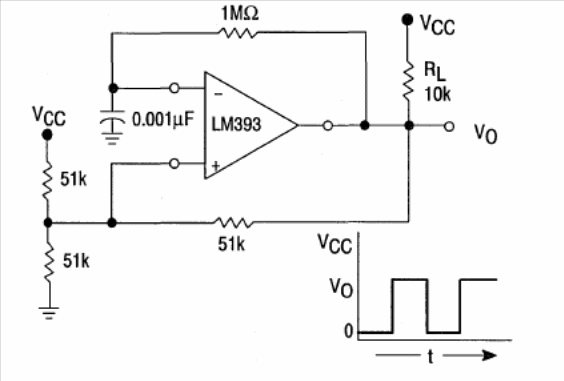

The circuit shown is from the 1993 Motorola Linear Interface ICs. The power source may be common and the frequency depends on the capacitor. Other operational may be used.
