Ultra High Gain Amplifier (CB4940E)

Details
Written by: Newton C. Braga

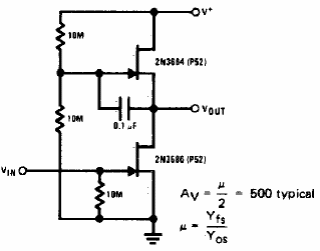

     This setting appears elsewhere in this section. This was obtained from an American 1980s documentation. The gain is 500 and JFETs can be commonly used as the BF245.
