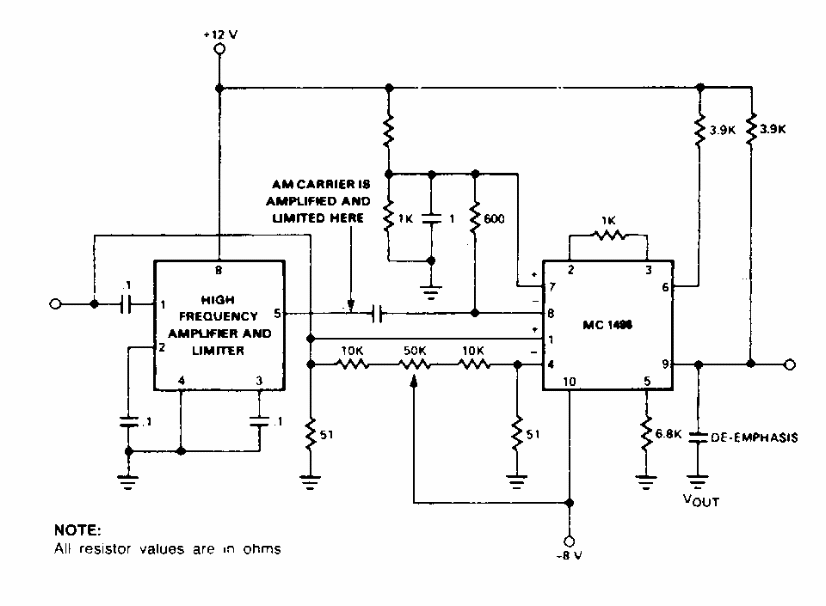

This circuit is from a 1980s Signetics documentation. The circuit separates the modulation signal from a carrier. The used components are not common today.
| Clique na imagem para ampliar |
AM Demodulator (CB6197E)
- Details
- Written by: Newton C. Braga
