Gain 1000 Sample and Hold (CB5960E)

Details
Written by: Newton C. Braga

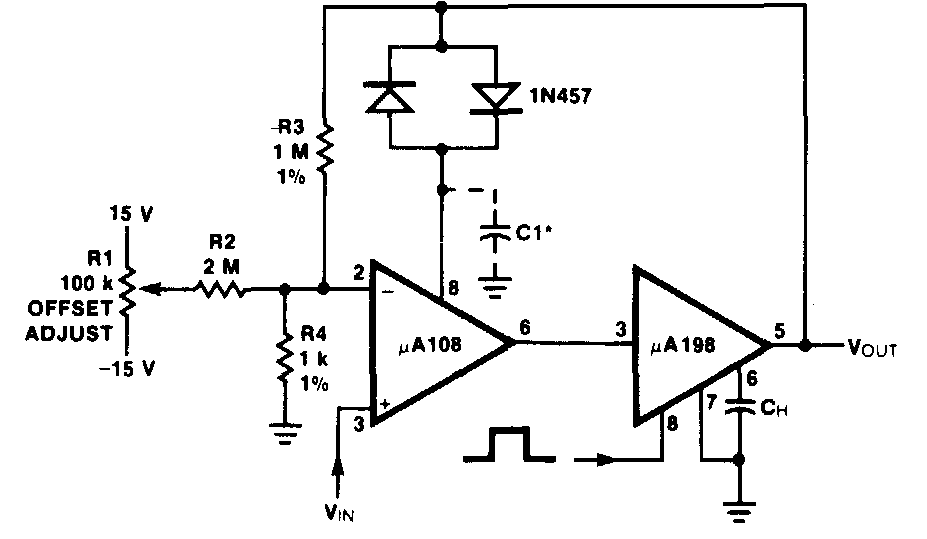

    This 80's circuit has been winning. It is a 1 000 gain sample and hold circuit and an offset current setting. The configuration can be adapted to operate with modern equivalent components.
