Blown Fuse Alarm (CB6109E)

Details
Written by: Newton C. Braga

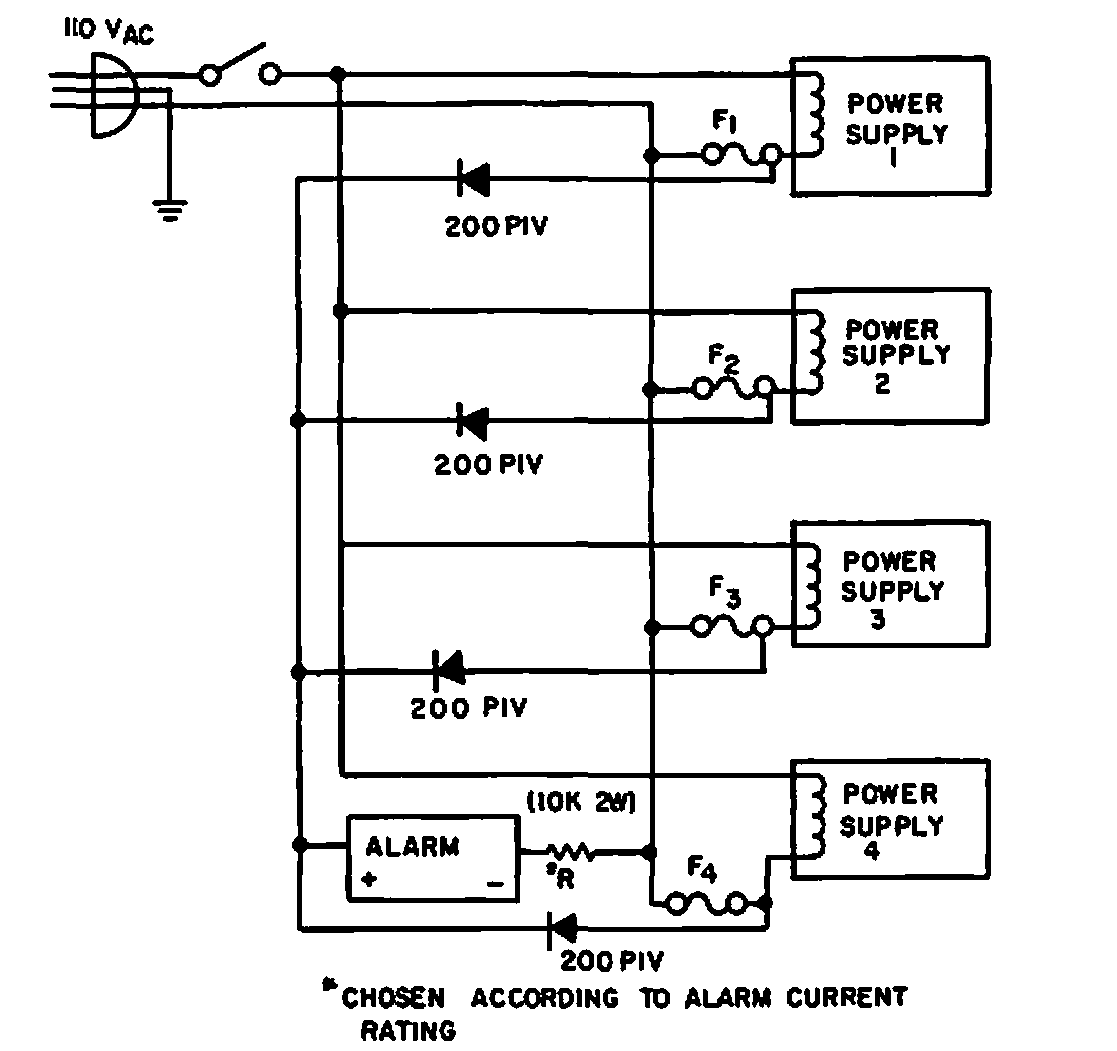

   We found this circuit in a 1967 Electronic design. However, it can be easily implemented even today as it uses only common diodes.
