Off-hook Telephone Indicator (CB5994E)

Details
Written by: Newton C. Braga

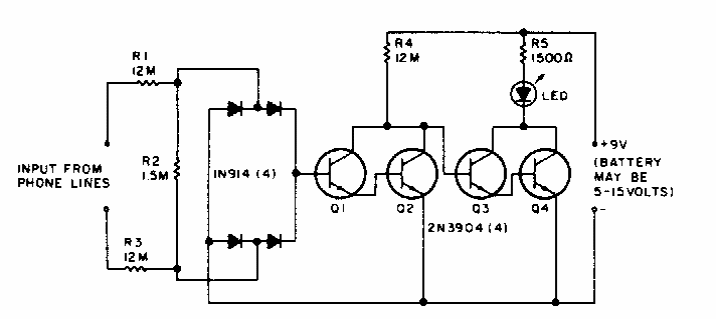

    This circuit was found in a 1980s US publication. It indicates when the phone is off-hook by triggering an indicator.
