Visual Modulation Monitor (CB5354E)

Details
Written by: Newton C. Braga

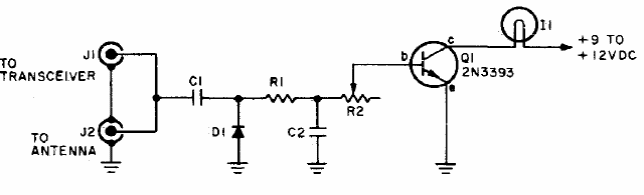

     R1 may be 10k and R2 100k. The transistor can be the BC548 and instead of the small lamp we can use a series LED with a 1k resistor. D1 is germanium and C1 is 10 nF. C2 can be 47 nF.




| Clique na imagem para ampliar |
