Radiation monitor (CB5923E)

Details
Written by: Newton C. Braga

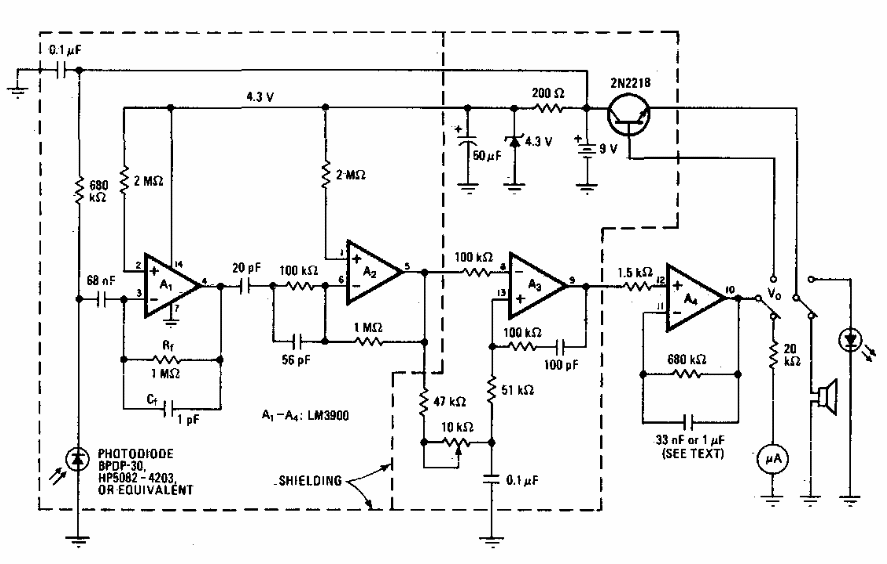

   This wide-range radiation monitor was found in a 1980s documentation. The circuit uses a diode as a sensor and is quite critical requiring shielding shown in dashes to prevent snoring due to gain.
