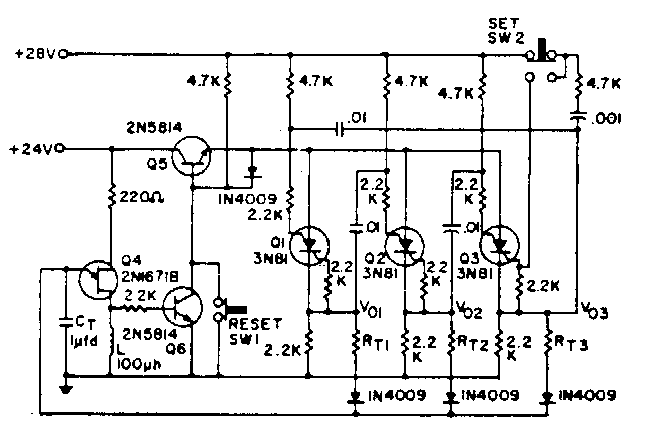

Variable Timing Ring Counter (CB6107E)

Details
Written by: Newton C. Braga



     General Electric suggests this circuit in an 80's documentation. The circuit makes use of PUTs that are not common components today. Note the timing components that may change.
