Battery Charger (CB6058E)

Details
Written by: Newton C. Braga

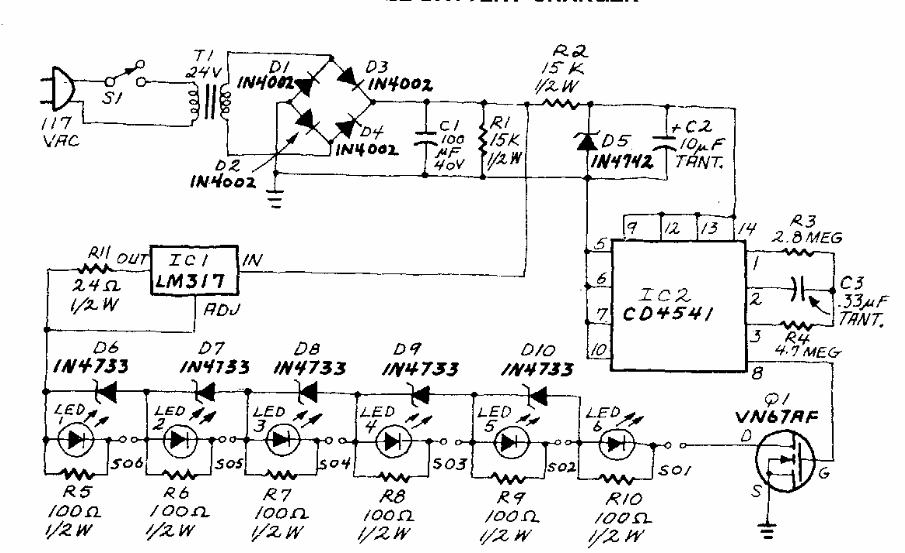

     This circuit is from an 80's Radio Electronics. The circuit has several output options for 50 mA currents with load indicator through LEDs.
