Charge and Discharge Current Sensor (CB5256E)

Details
Written by: Newton C. Braga

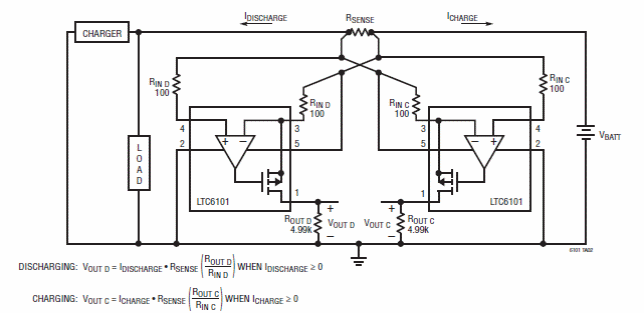

     This 2005 Linear Technology circuit has separate outputs for monitoring the charge and discharge of a battery. Formulas next to the diagram let you calculate the components.
