Automatic Head Light (CB6047E)

Details
Written by: Newton C. Braga

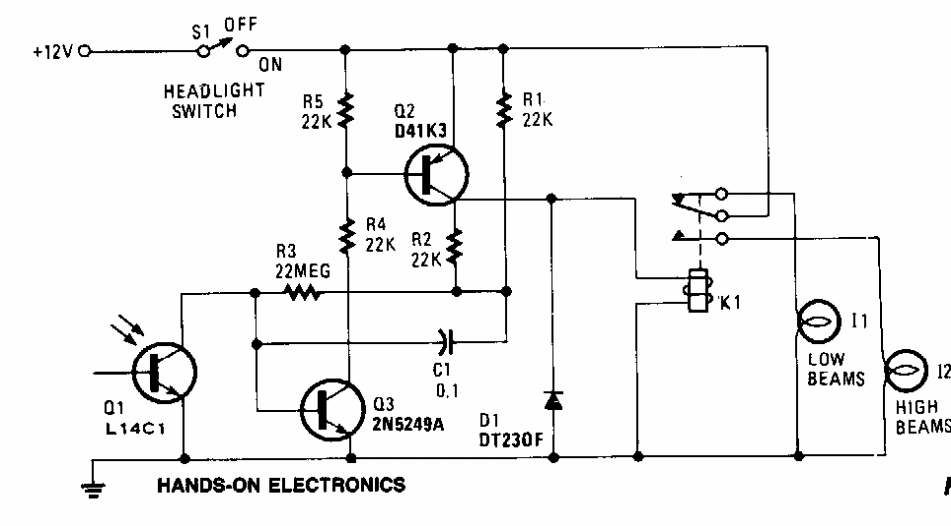

    This 80's Hands On Electronics circuit automatically switches from high light to low light when an oncoming car illuminates the sensor. The circuit is powered by the car's own battery.




| Clique na imagem para ampliar |
