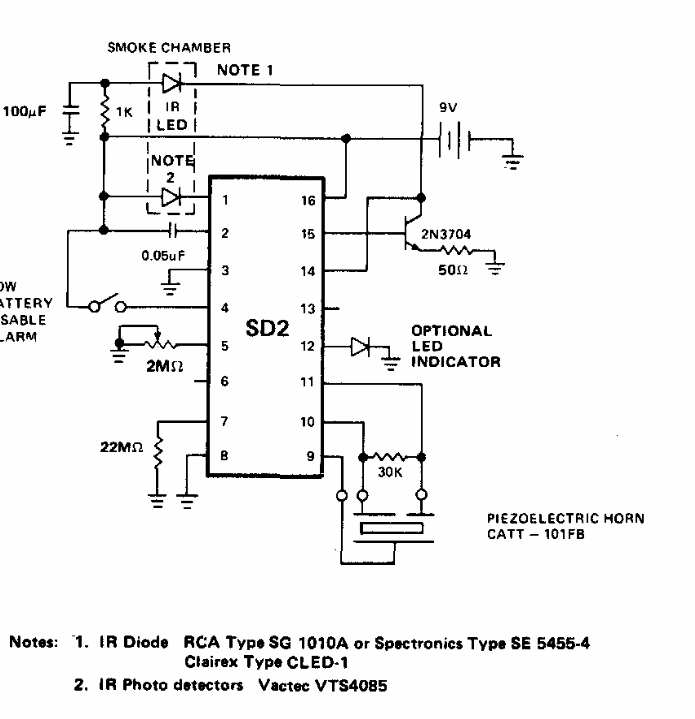

This circuit is from an American 80's documentation. The integrated circuit is from the time and the sensor consists of a smoke chamber measuring its transparency change.
| Clique na imagem para ampliar |
Smoke Detector (CB5965E)
- Details
- Written by: Newton C. Braga
