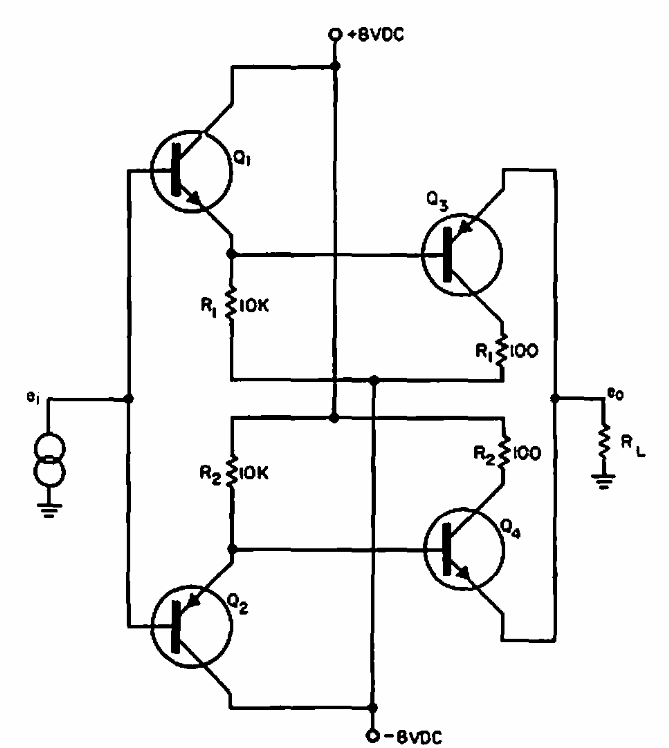

Dual Voltage Follower (CB6121E)

Details
Written by: Newton C. Braga



    This circuit is from a 1965 Electronic Design. The transistors may be general purpose and the power supply must be symmetrical.
