Audio Controlled Lamp (CB5988E)

Details
Written by: Newton C. Braga

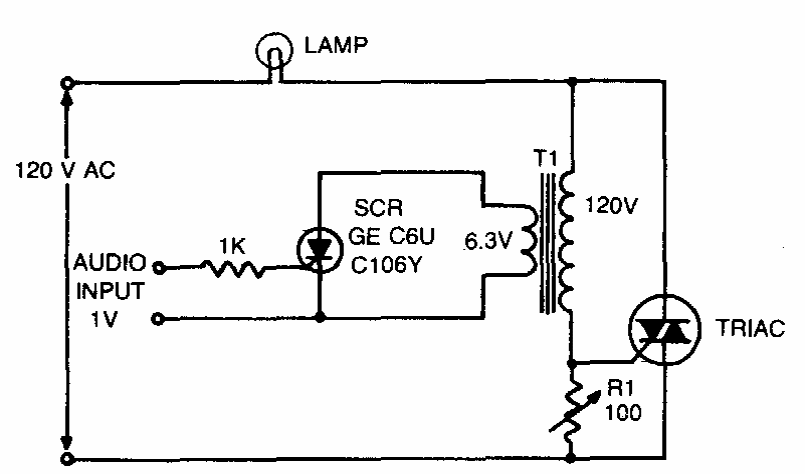

     This circuit is better than the previous one in that the control is isolated by a transformer. The transformer has 110 or 220 V primary and 6.3 to 12 V secondary with 200 to 500 mA current.
