Dial monitor (CB5999E)

Details
Written by: Newton C. Braga

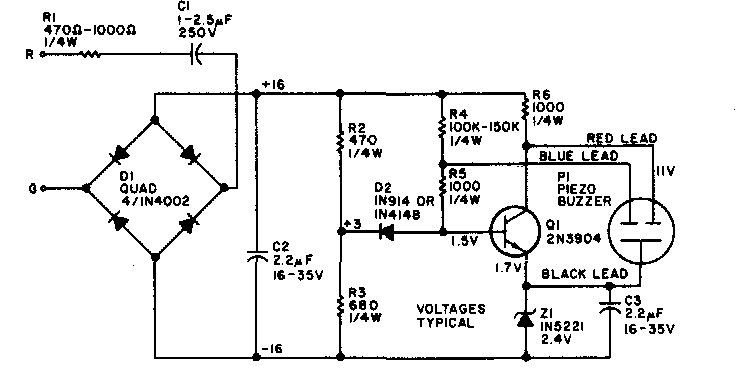

     We found this circuit in an American 1980s documentation. The circuit uses a piezoelectric transducer unusual in our day. The transistor is general purpose type.






| Clique na imagem para ampliar |
