Multisensor Alarm (CB6080S)

Details
Written by: Newton C. Braga

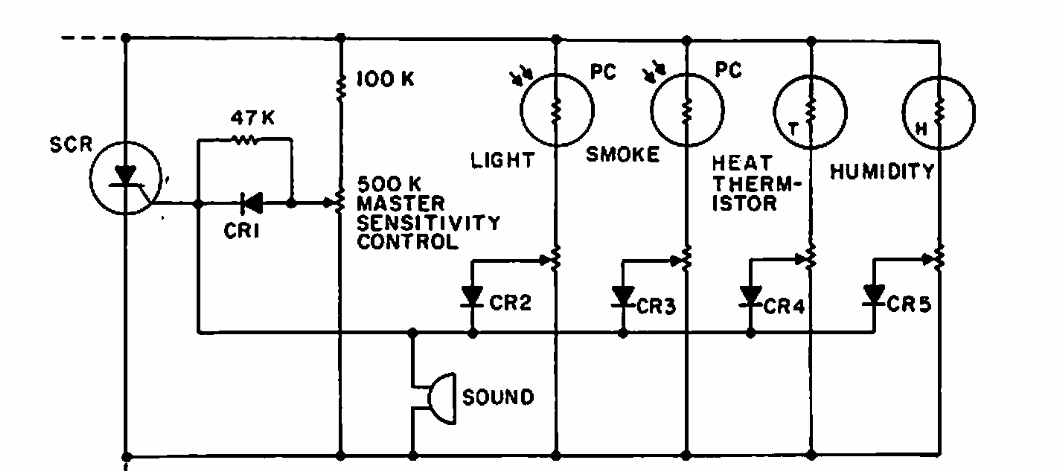

    This circuit is from a 1968 publication. Here we have several types of resistive sensors with individual adjustments triggering a single SCR. Power depends on the type of sound device to be triggered.




| Clique na imagem para ampliar |
