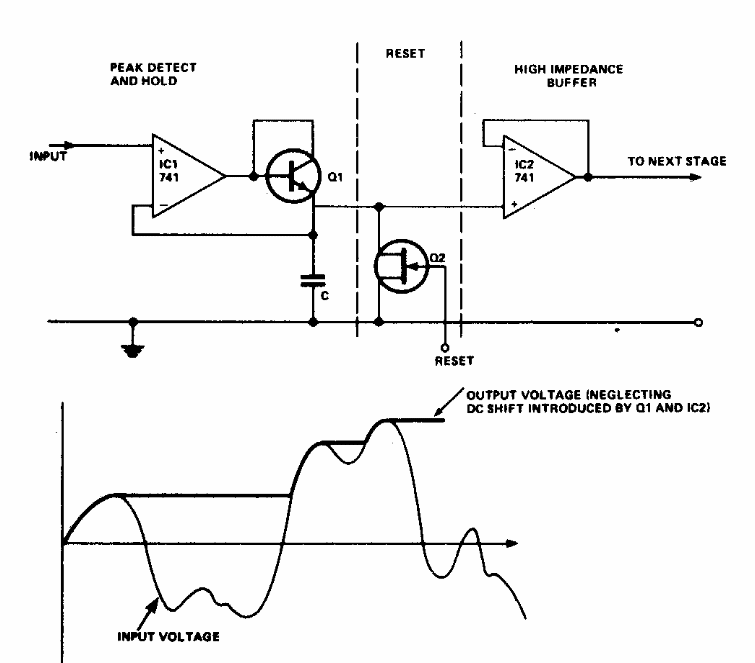

This is the basic configuration of an operational amplifier sample & hold circuit. The FET and transistor are commonly used. The circuit is from an 80's documentation.
| Clique na imagem para ampliar |
Sample and Hold (CB5953E)
- Details
- Written by: Newton C. Braga
