Divider by 100 (CB6832E)

Details
Written by: Newton C. Braga

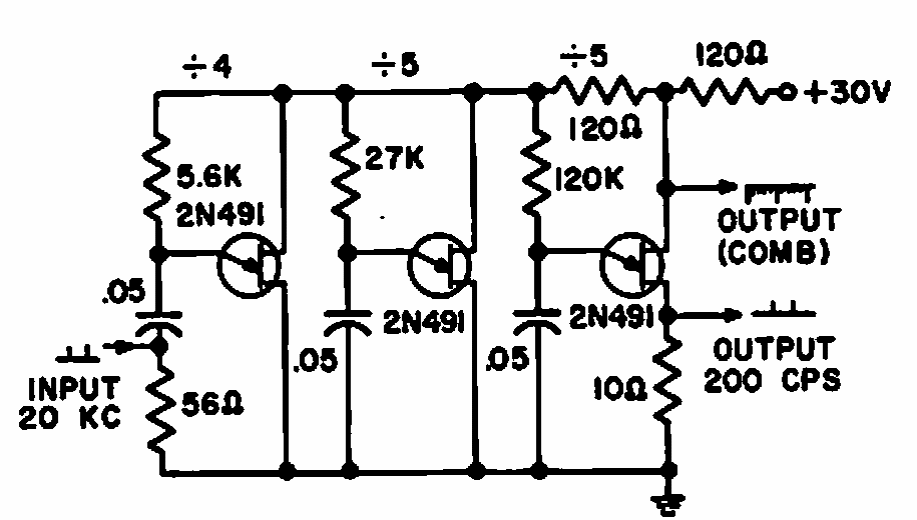

     Found in a 1965 General Electric datasheet, this low frequency circuit divides the frequency of a 20 kHz signal by 10, thus obtaining a 200 Hz signal.




| Clique na imagem para ampliar |
