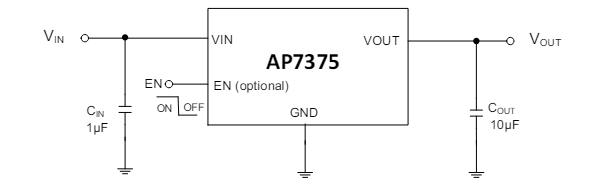

Diodes Incorporated AP7375x 300mA ULDO Regulators offer a wide input voltage range (45V), low quiescent current (2.1μA), and low-dropout linear regulator (LDO) with 300mA load current. The AP7375 LDO implements an EN pin that accepts an input voltage of 45V to enable and disable the LDO output. The Diodes Incorporated AP7375x Regulators feature a very fast response time against line voltage and load current transient. Additionally, it ensures no overshoot voltage during start-up and short-circuit recovery. The device also features integrated short-circuit and thermal shutdown protection. The AP7375 has 1.8V, 3.0V, 3.3V, 3.6V and 5.0V fixed output voltage versions, and is housed in the SOT23, SOT25, SOT89 and U-DFN2020-6 (SWP) (Type UXC) packages.
