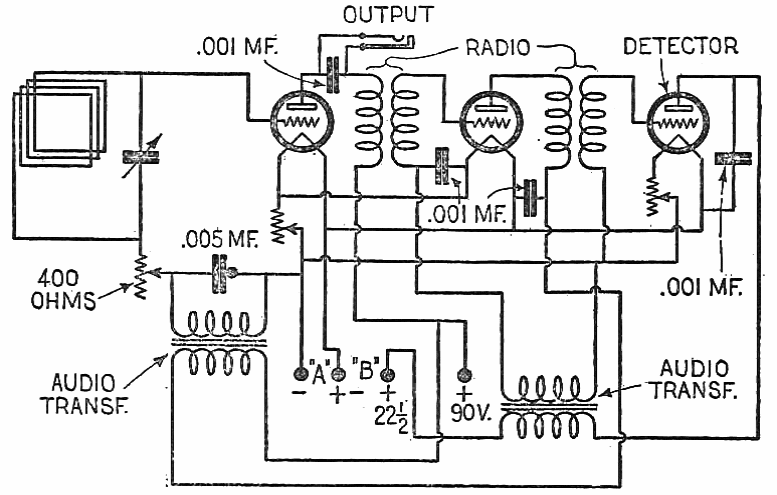

Reflex receiver with loop antenna (T1660E)

This 3-tube receiver is from a 1924 publication. The circuit has 3 supply voltages and a high-impedance headphone output.
