Recorder Amplifier (T481E)

Details: Written by: Newton C. Braga

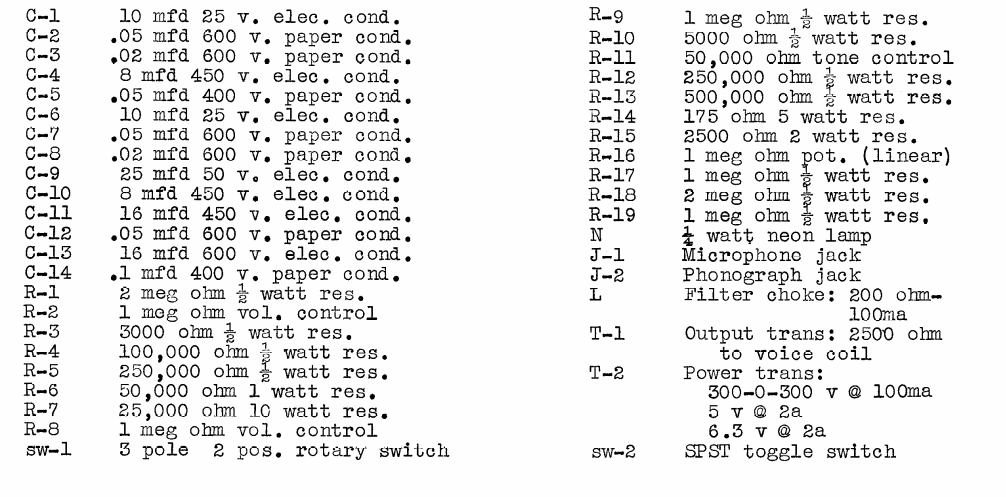

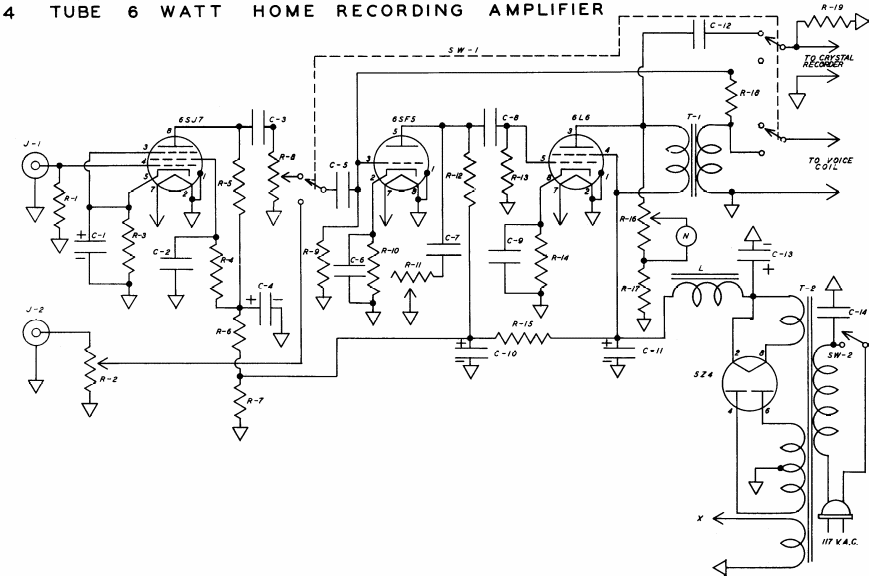

This 6W amplifier with 4 tubes was indicated in an American documentation from 1947 to operate with recorders. The circuit uses a source with a transformer.
