Simple Shortwave Receiver (T824E)

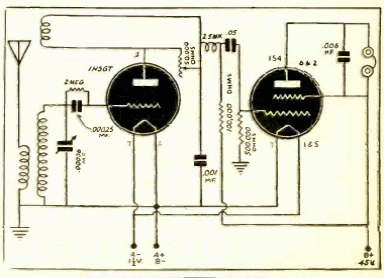

Using two tubes, this receiver receives the short-wave band determined by the coils. The receiver is regenerative and has high impedance headphone listening. The circuit is indicated for 45 V battery supply, but a power source can be used.
