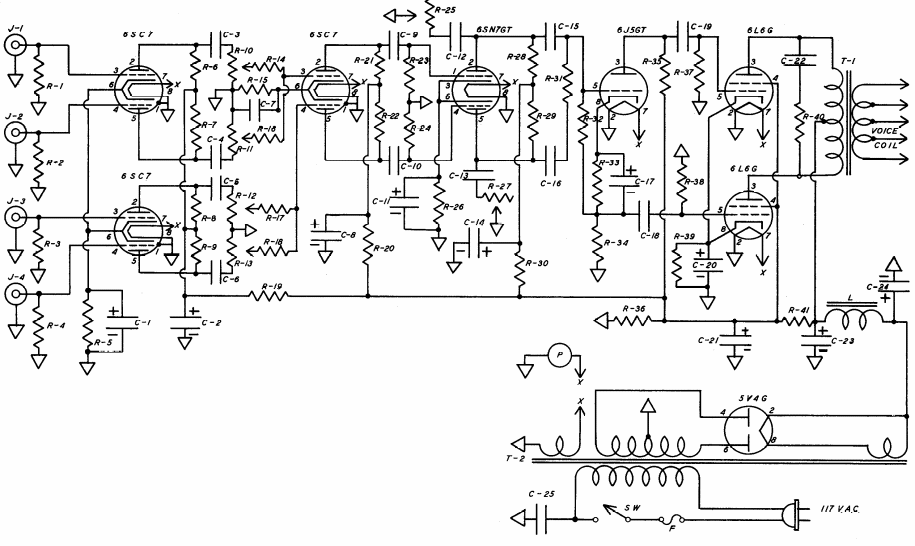

This 4-channel mixer amplifier was found in an American publication from 1947. The circuit uses counterphase output tubes and a transformer power source.
| Clique na imagem para ampliar |
| Clique na imagem para ampliar |
15W 4-Channel Amplifier (T500E)
