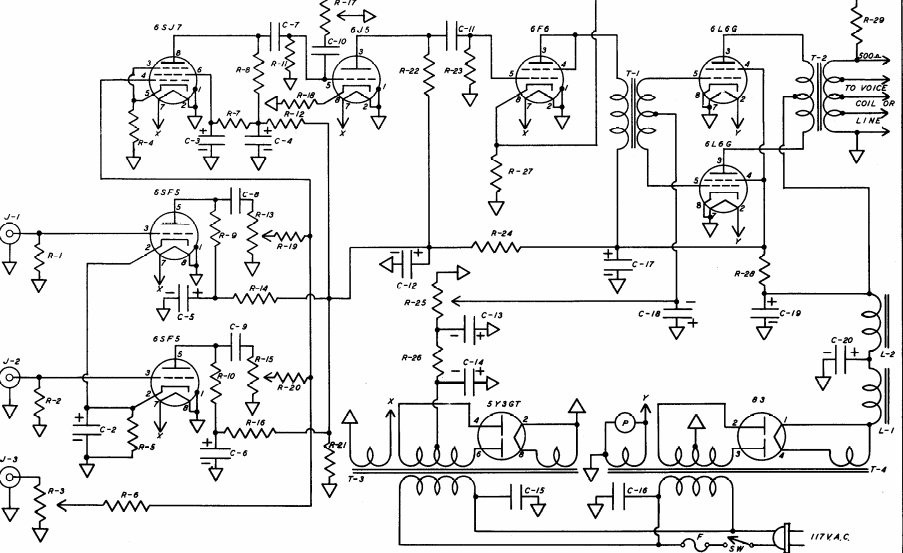

This 9-tube amplifier was found in an American publication from 1947. The circuit uses a push-pull stage and a transformer drive. The source is dual with two rectifier tubes.
| Clique na imagem para ampliar |
| Clique na imagem para ampliar |
45W Amplifier (T502E)
- Details
- Written by: Newton C. Braga
