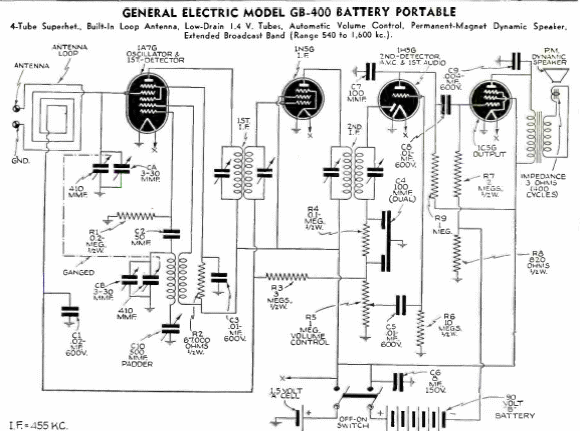

In the figure we have the diagram of the model GB-400 receiver that was indicated for battery operation with 1.5 V filament tubes. The circuit used a loop antenna and tuned the midwave band with 455 kHz IFs. With 4 tubes, the circuit had good sensitivity.
