Transformerless power supply for tubes (T1126E)

Details
Written by: Newton C. Braga

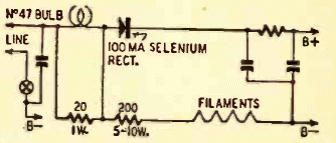

This circuit found in a 1947 documentation shows how to use semiconductor diodes in a transformerless tube source. The diode used was selenium.
