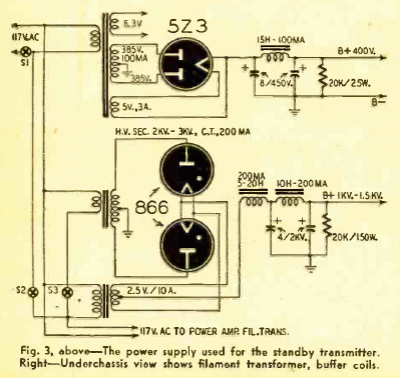

In the figure, from the same 1947 Radio Craft magazine, the power supply for the previous transmitter. Note the high voltages used, requiring great care with the layout.
Power supply for the 500 W transmitter (T1148E)
