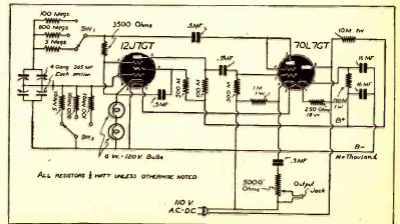

This variable frequency oscillator (VFO) was found in a 1942 publication. The circuit uses two tubes and is frequency selected by a switch in 3 ranges. The circuit is powered directly by the power grid.
VFO (T787E)
- Details
- Written by: Newton C. Braga
