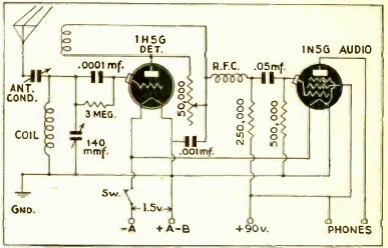

2-tube shortwave receiver (T823E)

This simple regenerative-type shortwave receiver was found in documentation from 1942. Note the supply voltages. The tuned range depends on the coil and the headphone must be high impedance with at least 2000 ohms. The antenna must be long.
