Tone Control (T1126E)

Details
Written by: Newton C. Braga

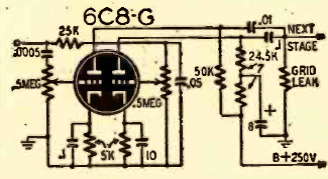

This basic tone control configuration was found in a 1947 documentation. The circuit uses a double triode, and its power can be taken from the amplifier with which it will operate.
