Minuteria for photographers (T524E)

Details
Written by: Newton C. Braga

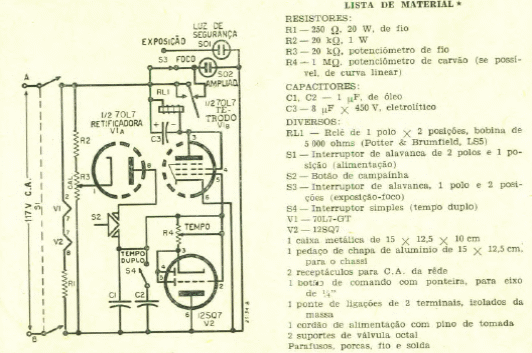

This timer circuit for photography was taken from Popular Electronics in January 1957. The power is supplied by the mains and the relay is of the high voltage type common at the time.
