Midget Amplifier (T967E)

Details
Written by: Newton C. Braga

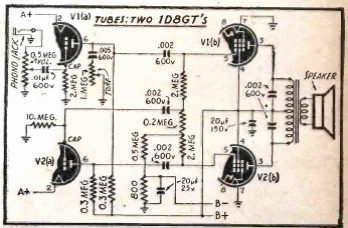

This small amplifier with only two tubes came out in a Radio Craft from 1945. The circuit does not include the source and has double tubes. Power is not the greatest.
