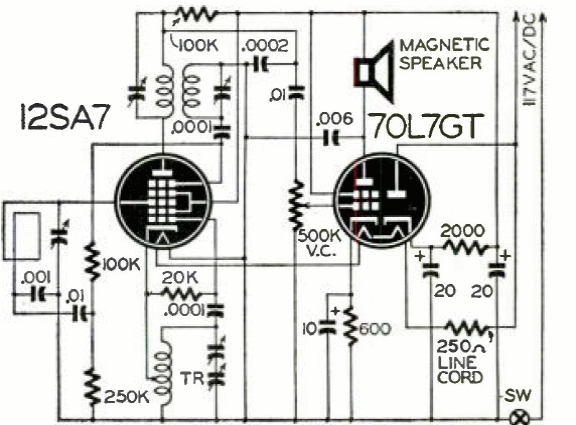

The feature that draws attention to this circuit from 1946 is the use of a tube with a 70 V filament. The circuit can then, with a small reducing resistance, feed the tube filaments and another 12 V from the 110 V network. antenna is four and the direct output on a high impedance speaker.
